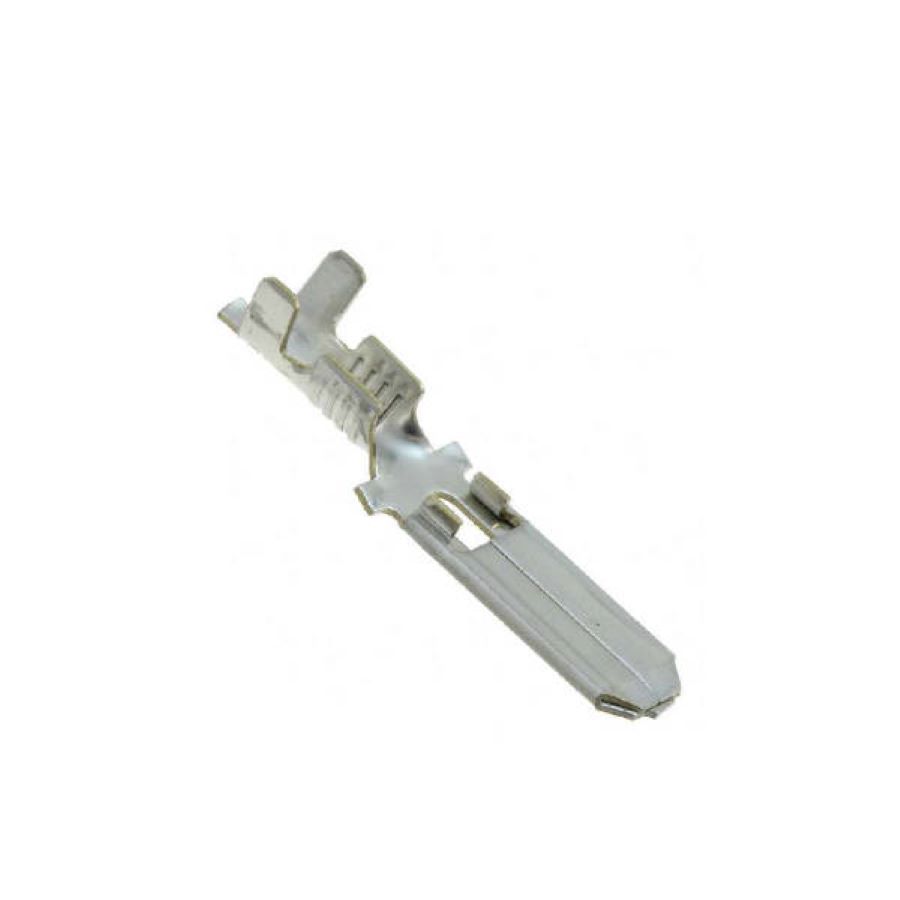

170340-3
Manufacturer:
TE Connectivity
Mfr.Part #:
170340-3
Datasheet:
Description:
Terminals Free Hanging 14 AWG Male
| Parameter | Value |
|---|---|
| Length | 26.4 mm |
| Termination | Tab |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 600 V |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Yellow |
| Gender | Male |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.4036 mm |
| Body Plating | Tin |
| Insulated Wire Support | No |
| Mating Tab Width | 6 mm |
| Tab Length | 13.7922 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 19776
Distributors
pcbx
pcbxUnit Price$0.51678
Ext.Price$0.51678
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51678 | $0.51678 |
| 10 | $0.25839 | $2.58390 |
| 50 | $0.19876 | $9.93800 |
| 100 | $0.15289 | $15.28900 |
| 500 | $0.11761 | $58.80500 |
| 1000 | $0.09047 | $90.47000 |
| 3000 | $0.06959 | $208.77000 |
| 5000 | $0.06634 | $331.70000 |
| 10000 | $0.06324 | $632.40000 |
| 30000 | $0.06029 | $1808.70000 |
| 50000 | $0.05748 | $2874.00000 |
| 100000 | $0.05480 | $5480.00000 |
